Product Specifications

Specification	Details

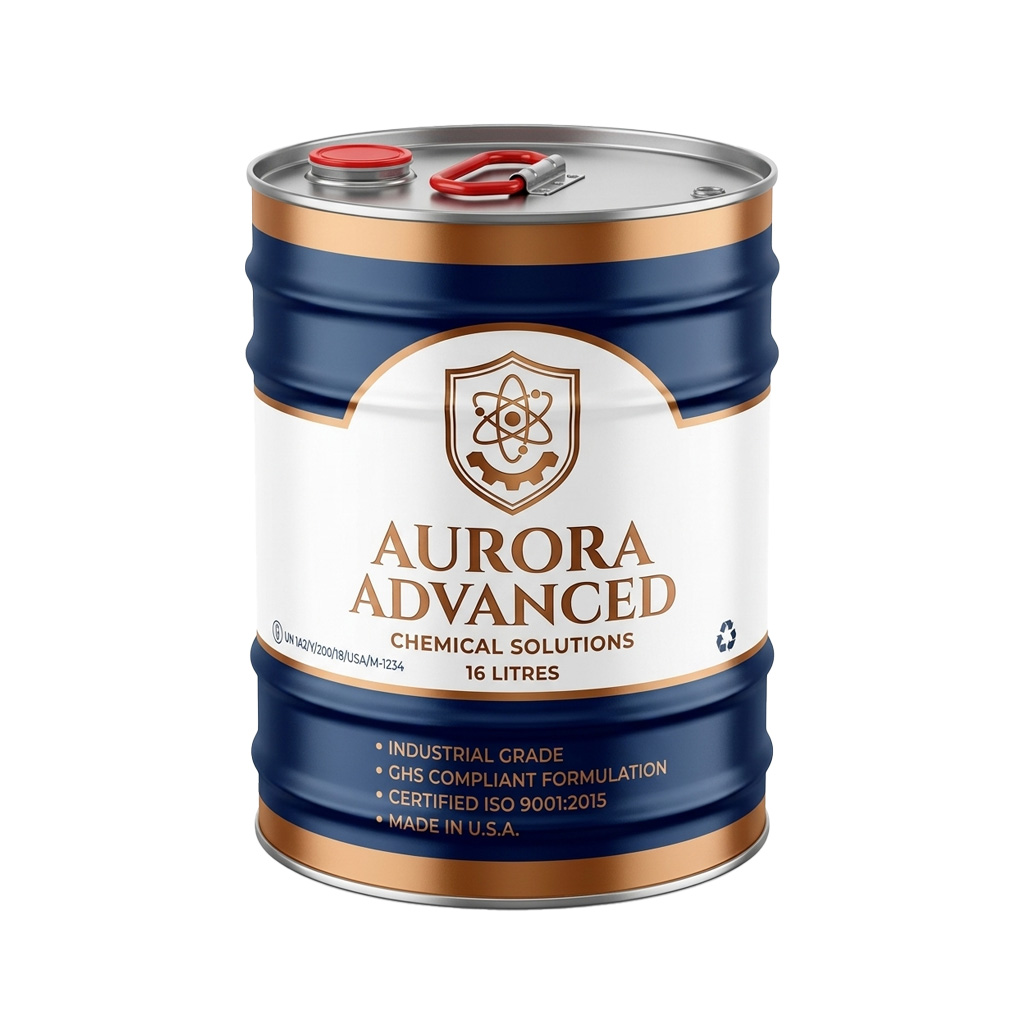

Product Type	Necked-In Tight Head Tin Drum
Material	Prime Tinplate
Standard Thickness	0.35 mm
Available Capacities	5L, 16L, 20L, 25L, 55L, 210L
Neck Opening	59 mm / 78 mm
Top Diameter	300 mm
Structure	Tight Head / Closed Top
Fittings	2″ and ¾” Bung Fittings
Gaskets	Poly-Irradiated Gaskets Available
Handle Options	Metal Handle / Bail Handle
Outer Finish	White Coating / Custom CMYK Printing / 3D Embossing / Clear Lacquer
Inner Coating	Plain Interior / Rust-Inhibiting Lining / Epoxy Phenolic Lining
Customization	Printing, Inner Coating, Fittings, Closure & Tooling
Certification	UN Certification Available for Hazardous Material Applications
OEM	Available
ODM	Available
MOQ	Factory Direct / Low MOQ Options

Note: Final drum dimensions, fittings, inner coating and certification requirements should be confirmed according to the specific capacity and intended contents.

---

Why Choose a Necked-In Tight Head Tin Drum?

01. Necked-In Reduced-Diameter Design

The necked-in top design reduces the diameter around the upper section of the drum and provides a defined opening for fitting installation.

This structure is suitable for applications that require controlled filling, secure closure and more precise dispensing.

Available neck openings include 59 mm and 78 mm, depending on the drum configuration.

02. Tight Head Closed-Top Construction

The tight head structure uses a permanently closed top rather than a removable open lid.

Contents are accessed through the installed bung or fitting system.

This construction is designed to provide secure closure and help protect liquid products during storage, handling and transportation.

03. Multiple Industrial Capacities

Different industrial applications require different packaging volumes.

Available capacities include:

5L · 16L · 20L · 25L · 55L · 210L

This range allows buyers to select a suitable drum format for different liquid products, production requirements and distribution channels.

04. Multiple Bung & Fitting Options

The drums can be configured with different fitting systems according to the contents and dispensing requirements.

Available options include:

• 2″ bung fittings
• ¾” bung fittings
• NPT fitting options
• Poly-irradiated gaskets
• Specialized closures

Fitting specifications should be confirmed according to the intended application and required sealing system.

05. Tinplate Construction

The drums are manufactured from prime tinplate, with the standard specification listed at 0.35 mm thickness.

Tinplate construction provides a metal packaging solution for a wide range of industrial liquid products and supports customized exterior printing and finishing.

06. Inner Coating Options

Different liquid products can require different interior protection systems.

Available options include:

Plain Interior

Suitable for applications where no additional inner coating is required.

Rust-Inhibiting Lining

An optional interior treatment for applications where additional corrosion protection is required.

Epoxy Phenolic Lining

Available for selected chemical and industrial applications according to product compatibility requirements.

The appropriate inner coating should be confirmed according to the chemical composition and final application of the packaged product.

---

UN-Certified Tight Head Tin Drums

For hazardous-material applications, UN-certified configurations are available.

The original product specification states that the drums can be supplied for hazardous material applications and tested according to applicable UN/DOT packaging requirements.

This makes the product suitable for businesses looking for industrial metal packaging for:

• Chemicals
• Solvents
• Paint-related products
• Lubricants
• Industrial liquids
• Hazardous materials

Important: Certification requirements depend on the specific drum configuration and packaged substance. Confirm the required UN specification before production.

---

Applications for Tight Head Tin Drums

These necked-in tight head tin drums are designed for a broad range of liquid and industrial packaging applications.

Paints & Coatings

Suitable for selected:

• Paints
• Coatings
• Varnishes
• Stains
• Inks

Chemicals & Solvents

Suitable applications include:

• Industrial chemicals
• Solvents
• Thinners
• Chemical liquids
• Selected hazardous materials

Lubricants & Oils

The drum format can be used for selected:

• Lubricants
• Motor oils
• Industrial oils
• Other liquid petroleum-related products

Specialty Liquid Products

The original product page also lists applications involving:

• Essential oils
• Fragrances
• Flavorings
• Beverages
• Fruit purees
• Citrus concentrates

Final material, coating and regulatory requirements should always be confirmed against the actual contents.

---

Custom Tin Drum Printing & Finishing

Industrial packaging does not have to look generic.

LAMPTOP supports customized exterior finishes for companies that want their drums to communicate brand information, product identification and safety information.

High-Definition CMYK Printing

Custom CMYK printing can be used for:

• Brand logos
• Product information
• Safety information
• Product graphics
• Company identification
• Regulatory markings

3D Embossing

Embossed elements can add raised details to selected logos, graphics and decorative areas.

This option can be used to create a more distinctive industrial packaging appearance.

Clear Lacquer

Clear lacquer can be applied as an exterior finishing option according to the final specification.

Exterior Coating

Standard and customized exterior coating options are available, including white coating and custom printed surfaces.

---

Custom Fittings & Closures

Different liquid products have different filling and dispensing requirements.

The drum can be customized with:

• 2″ bung fittings
• ¾” bung fittings
• NPT fittings
• Poly-irradiated gaskets
• Specialized closures
• 59 mm neck openings
• 78 mm neck openings

The fitting configuration should be selected according to the product viscosity, filling method, dispensing requirements and required sealing performance.

---

OEM & ODM Tight Head Tin Drum Manufacturing

LAMPTOP supports OEM and ODM manufacturing for industrial metal packaging projects.

Customization can include:

• Drum capacity
• Drum dimensions
• Tinplate thickness
• Neck opening
• Bung configuration
• Fittings
• Gaskets
• Inner coating
• Exterior coating
• CMYK printing
• Embossing
• Clear lacquer
• Custom tooling

From initial packaging requirements and structural design through sample development and mass production, the production process can be adapted to the requirements of the project.

---

Who Uses Tight Head Tin Drums?

These industrial drums are suitable for businesses such as:

• Paint manufacturers
• Coating manufacturers
• Chemical companies
• Solvent suppliers
• Lubricant manufacturers
• Motor oil brands
• Industrial liquid manufacturers
• Chemical packaging distributors
• Importers
• Industrial packaging wholesalers
• Private-label manufacturers
• Hazardous-material packaging suppliers

---

Tight Head Tin Drum Manufacturing Process

1. Share Your Product Requirements

Provide:

• Product type
• Liquid contents
• Required capacity
• Estimated quantity
• Target market
• Filling method
• Required fittings
• Certification requirements

2. Confirm Drum Structure

Our team reviews:

• Drum capacity
• Neck opening
• Tight head structure
• Bung configuration
• Material thickness
• Inner coating
• Exterior finish

3. Confirm Fittings & Coatings

The appropriate bung, gasket and interior coating are selected according to the final packaging requirements.

4. Artwork & Sample Development

Custom artwork can be prepared for tinplate printing.

Samples can be developed according to the confirmed drum structure, fittings, coating and artwork.

5. Mass Production

After sample and specification approval, production proceeds according to the confirmed quality and packaging requirements.

6. Packing & Delivery

Finished drums are packed and prepared for shipment according to the agreed logistics requirements.

---

Frequently Asked Questions

What is a tight head tin drum?

A tight head tin drum is a closed-top metal drum with permanently seamed ends. Product access is provided through installed fittings or bung openings rather than a removable open lid.

What does necked-in mean?

Necked-in refers to a reduced-diameter section around the upper part of the drum. It creates a defined neck opening for fitting installation and controlled filling or dispensing.

What capacities are available?

The product page lists capacities of 5L, 16L, 20L, 25L, 55L and 210L.

What material are the drums made from?

The standard material listed is prime tinplate with a 0.35 mm thickness.

What neck openings are available?

The listed neck openings are 59 mm and 78 mm, depending on the selected configuration.

What fittings are available?

Available options include 2″ and ¾” bung fittings, NPT fitting options, poly-irradiated gaskets and specialized closures.

Can the inner coating be customized?

Yes. Available options listed for this product include plain interior, rust-inhibiting lining and epoxy phenolic lining, depending on the application.

Can the drums be custom printed?

Yes. The product supports high-definition CMYK printing, as well as exterior coating, 3D embossing and clear lacquer options.

Are these drums UN certified?

UN-certified configurations are available for hazardous-material applications. The required certification should be confirmed according to the specific drum configuration and packaged substance.

Can you manufacture OEM drums?

Yes. OEM and ODM production is available, including customization of capacity, structure, fittings, coatings, printing and tooling.

What products can be packaged in these drums?

The original product specification lists applications including paints, coatings, varnishes, stains, inks, adhesives, solvents, thinners, lubricants, motor oils, essential oils, fragrances, flavorings, beverages, fruit purees, citrus concentrates, chemicals and hazardous materials.

Final compatibility should be confirmed according to the actual product being packaged.
